Screw Screenings Washer Compactor Residue Compress Simple Structure
Small Cover Area
Description:

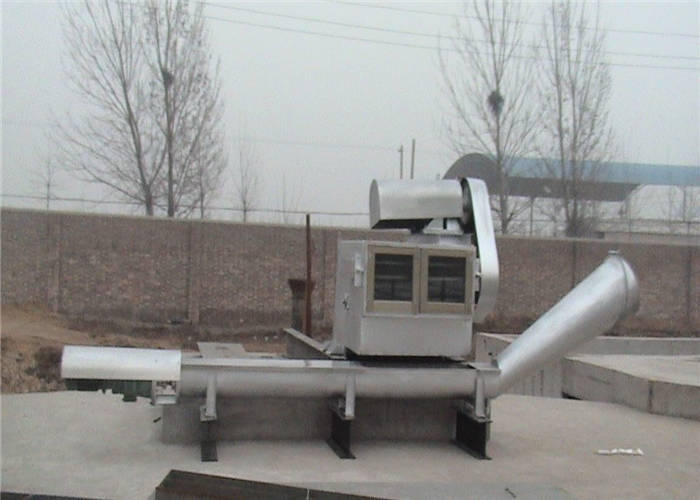

Screw compactor is the bar screen supporting facilities, screw
press presses the dirt carried by bar screen, in order to reduce
the dirt moisture and reduce the volume of sewage.
Screw compactor consist of press screw, screw pipe, transmission
parts, feed hopper and discharge hopper. The dirt from the feed
hopper into screw pipe, under the function of press screw, press,
dewatering and conveying to the discharge mouth.
Drive shaft rotation speed reducer drive the blade, helix Angle to
produce thrust forward to squeeze into the squeeze tube material,
after extruding the material is being exhausted from port
discharge, and waste water is separated into sink to achieve the
purpose of separation.
Applications:
· It is used to dehydrate and compress the residue from the sewage
pumping station, the sewage treatment plant and the water plant.
· Dehydrate and compress the residue in papermaking, sugar making,
wine making, food processing, slaughtering, leather, textile,
printing, petrochemical and other industrial wastewater treatment.
Technical Parameters:
Model Parameter | BWSC-260 | BWSC-300 | BWSC-360 | BWSC-420 |
| Capacity(m3/h) | 1.5 | 3 | 4.5 | 6 |
| Screw diameter(mm) | 260 | 300 | 360 | 420 |
| Conveying length(mm) | 6 | 6 | 6 | 6 |
| Power(kW) | 2.2 | 3 | 4 | 5. |
Advantages:
Simple structure, small cover area, easy installation and
maintenance; In addition to the slag discharge mouth open, the rest
parts can be enclosed stamped, will not spill material, reduce air
pollution.
