Automatic Rotary Drum Fine Screen In Channel Advanced Technology 1-5mgrid

Description:

Rotary drum screen(in channel) is a new type of product developed & produced by BOWEE which absorbed foreign advanced technology & combined actual condition of domestic water treatment. It is the fine screen which integrates residue collecting, conveying and dewatering together and been widely used for municipal wastewater treatment plant. The rotary drum screen is composed of cylindrical screen drum, the installation angle is 35. Residues get blocked and stored on the inner surface of screen drum while flowing by. The whole cylindrical drum which is driven by motor, drum surface washed by brush and spraying water. Residue blocked by deslagging plate dropped into the collecting hopper & delivered by central screw conveyor, and finally fell into waste cart from discharge outlet for outward transport. There are two kinds of screen, perforated screen and wedge wire.

Applications:

· Municipal Sewage treatment

· Papermaking wastewater

· Water Treatment Plant

· Leather industry

· Beverage industry

· Slaughterhouse

· Pharmaceutical wastewater

· Food industry

· Petrochemical industry

· Textile industry

Technical Parameters:

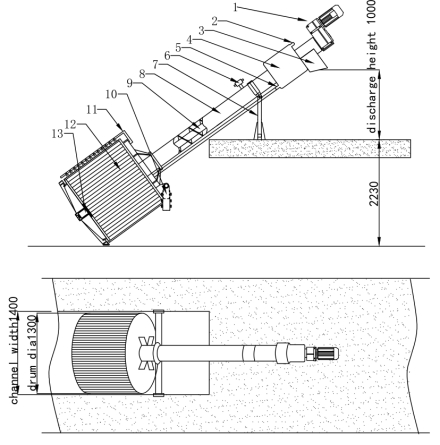

1.Gearbox 2.Clean water inlet 3.Discharge port 4.Screw barrel 5.Screw outlet 6. Solenoid valve and inlet nozzle 7.Support 8.Screw pipe 9.Screw press 10.Support 11.Cleaning system 12.Drum screen 13. Underwater bearing

Advantages:

· Little hydraulic loss, high efficiency, and large processing capacity.

· Whole stainless steel structure, convenient in maintenance and long service life.

· The working device of the equipment can clean the equipment by itself.

· A system with more functions, and structure compact.
